Optical Instrument Use Quartz Glass Tube With High Light Transmittance
Quartz Glass Tube Application
Quartz Glass tubes are widely used in all kinds of lights, such as sterilization lamp, mercury lamp, metal halide lanmp, diffusiion tube, protestion tube, optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military insductry, metallurgy and water treatment.
HIGH TEMPERATURE RESISTANT
Quartz glass hardening temperature about 1730℃.
Can be used for a long time under 1100℃.
The highest temperature can reach 1450℃.
GOOD PERVIOUS TO LIGHT
Quartz glass has good transmittance in all spectral bands from purple to red.
The visible light transmittance is above 93% specially in the ultraviolet spectral region.
And the maximum transmittance is over 80%.
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD THERMAL STABILITY
The thermal contraction coefficient of quartz glass.
Can suffer severe temperature changes.
The quartz glass heated to 1100℃
also will not burst into cold water.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |

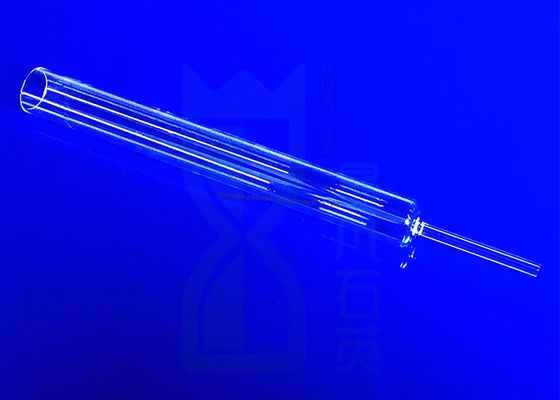

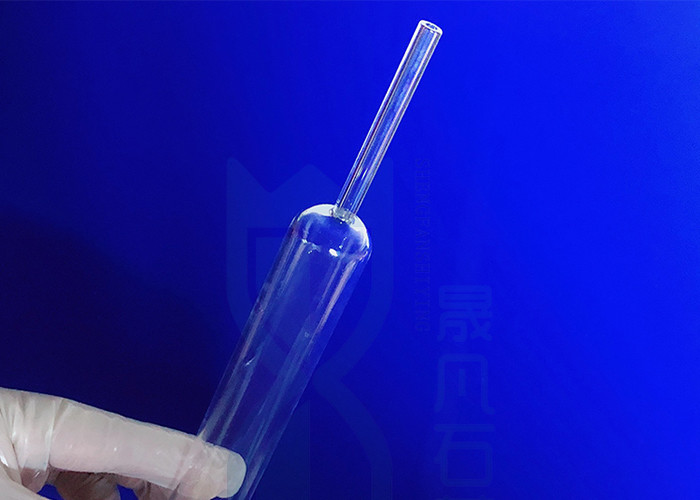

Quartz Glass Tube Pictures
