Product description:

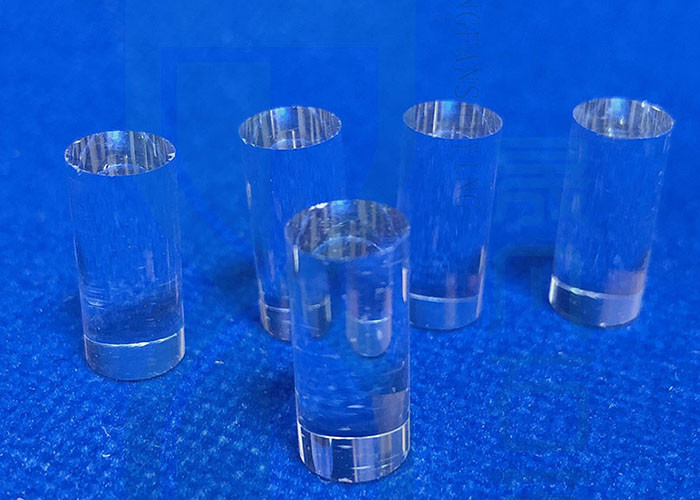

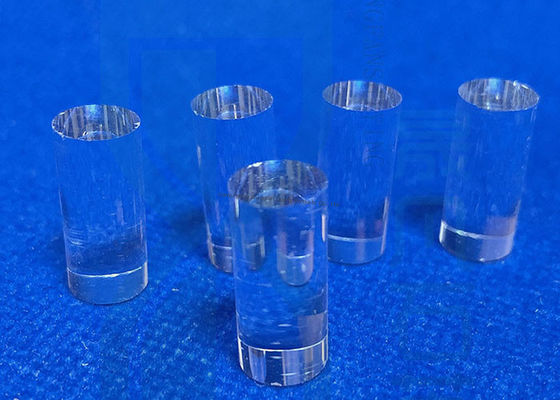

Quartz layering, using quartz as raw material, light transmittance up to 99%, no bubbles, black spots and other adverse phenomena, widely applicable to COG/FOG/TAB and other hot press equipment and LCD industry widely used;Step, rectangular, T - type can be customized according to drawings.
Quartz layering is an important part used in Bonder M/C. It is required for all the pressing equipment used in COG Bonder, OLB Bonder, FPC Bonder, PCB Bonder and Repail.It has the characteristics of low thermal deformation, high temperature resistance, acid and alkali resistance, high hardness and light transmittance. It is used as the Back up of pressing, and requires high precision.The use of quartz Back up material can improve the yield of the product.According to different uses and brands of equipment, quartz material and size requirements are not the same, our company can meet customer requirements, according to customer needs material, map to provide products suitable for all types of machines.We can make all kinds of shapes such as L type T type, square bar, double step and so on according to the sample requirements provided by customers.
Application of quartz products:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.Over the years,the company constantly introduce high-precision processing equipment,like CNC / Laser equipment / glass milling and grinding machine to insure the accuracy of the products.Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
