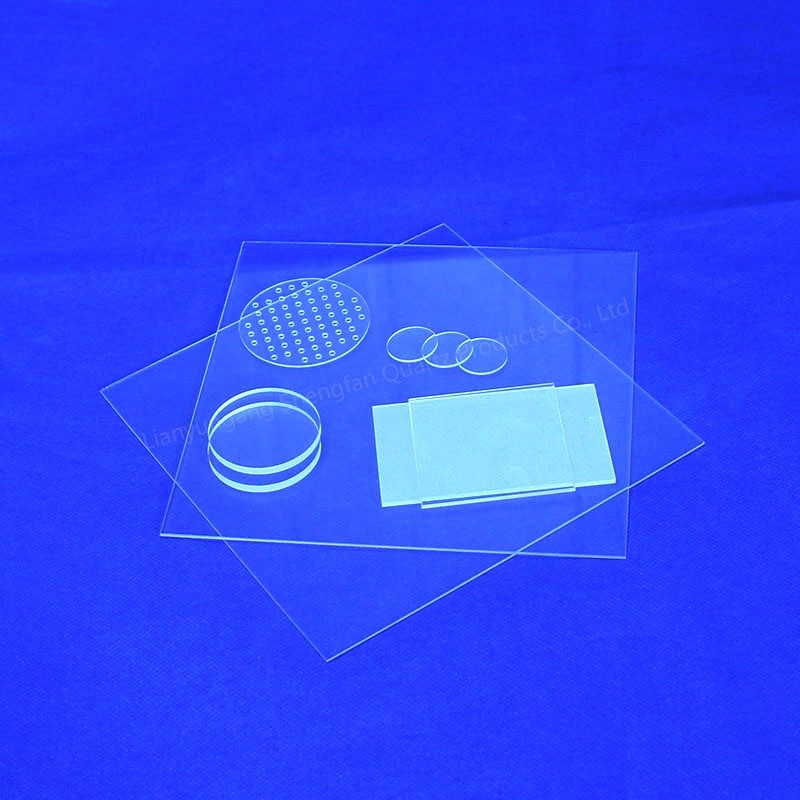

Shengfan Quartz plate characteristic
|
||
| *Brand | shengfanquartz | |
| *SIO2 | 99.99% | |
| *Density | 2.2(g/cm³) | |
| *Degree of hardness moh’ scale | 6.6 | |
| *Melting point | 1732℃ | |
| * Working temperature | 1100℃ | |
| *Annealing point | 1180℃ | |
| *Softening point | 1630℃ | |
| Specification | ||
| Color | Transparent | |
| Shape | Circular / Round | |
| Standard | JGS1,JGS2,JGS3 | |
| Material | 99.99% sio2 | |
| Diameter | 1-800mm | |
| Thickness | 0.2-100mm | |
| Application | Optics quartz windows | |
| Density | 2.2(g/cm³) | |
| Light Transmittance | >92% | |
| Hardness | Mose 6.5 | |
| Resistance Value | 1000 times than ordinary glass | |
The quartz glass plate is widely used in UVC/LED light, optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military industry, metallurgy and test for lab.
| Tolerance | ±0.01 | ±0.05mm | ±0.1mm |
| Surface treatment | 60/40 | 40/20 | |
| Shape | square amd circle | custom shape | any shape can be customed |
| Application case | Remote control window | vacuum cup | germicidal lamp |
